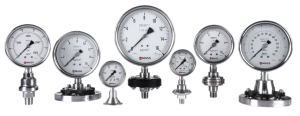

Pressure Gauges

Stainless steel process gauges.
Accuracy: 1.6% & 1% (EN-837 & IS-3624).
Size: 63MM, 100MM, 115MM, 150MM & 250MM.
Range: VAC TO 2500 BAR, VAC TO 36000 PSI.
Wetted Material: SS316, SS316L, MONEL.

All stainless steel safety process gauges.
Accuracy: 1% (EN-837 & IS-3624).
Size: 100MM, 115MM, 150MM.
Range: VAC TO 1400 KG/CM2, VAC TO 20,000 PSI.
Wetted Material: SS316, SS316L, MONEL.

Stainless steel liquid filled gauges.
Accuracy: 1.6% & 1% (EN-837 & IS-3624).
Size: 63MM, 100MM.
Range: VAC TO 2500 BAR, VAC 0 TO 36000 PSI.
Wetted Material: SS304, SS316, SS316L.

Liquid filled gauges.
Accuracy: 1.6 % (EN-837 & IS-3624).
Size: 63mm, 100mm.
Range: Vac to 400 kg/cm2, Vac to 6000 psi.
Wetted Material: Brass, SS316.

Utility pressure gauges.
Accuracy: 2.5% (IS-3624).
Size: 40MM, 50MM, 63MM.
Range: VAC TO 6000 PSI, VAC TO 400 BAR.
Wetted Material: PHOSPHOR BRONZE, BRASS, SS316.

Utility pressure gauges.
Accuracy: 2.5% (IS-3624).
Size: Vac to 10,000 psi, Vac to 700 bar.
Range: 100mm, 150mm, 250mm.
Wetted Material: Phosphor Bronze, Brass, SS316.

Diaphragm type pressure gauges.
Accuracy: 1.6 % (EN-837 & IS-3624).
Size: 100MM, 150MM.
Range: '± 25mbar to 10 kg/cm2 , ± 250 mmWC to 150 psi.
Wetted Material: SS316, SS316L, PTFE.

Stainless steel test gauge open front or solid font.
Accuracy: 0.5 % (EN-837 & IS-3624).
Size: 150mm, 250mm.
Range: Vac to 1400 kg/cm2, Vac to 15,000 psi.
Wetted Material: SS316, SS316L.

Single diaphragm type differential pressure gauge.
Accuracy: 2.5% (EN-837,IS-3624).
Size: 100MM, 115MM, 150MM.
Range: ±25 mbar to 10 kg/cm2, ±250 mmWC to 150 psi.
Wetted Material: SS316.

Below type differential pressure gauge.
Accuracy: 1.6 % (EN-837 & IS-3624).
Size: 150MM.
Range: ±60 mbar to 10 kg/cm2, ±600 mmWC to 150 psi.
Wetted Material: SS316L.

Stainless steel master gauge open front or solid font.
Accuracy: 0.25% (EN-837).
Size: 150mm, 250mm.
Range: Vac to 1000kg/cm2, Vac to 1500 psi.
Wetted Material: SS316, Monel, Beryllium Copper.
