Diaphragm Seals

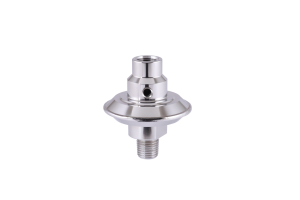

Diaphragm seals thread types.
Suitable for instruments with range: vac to 3500 psi, vac to 250 kg/cm2.
Wetted Material: SS316, SS316L, PTFE, PP, PVC.

Diaphragm seals threaded types.
Suitable for instruments with range: vac to 1500 psi, vac to 100 kg/cm2 .
Wetted Material: SS304L, SS316L, Hastelloy-B, Hastelloy-C, Nickel, K-Monel, Tantalum, PVC, PP.

Diaphragm seals thread types.
Suitable for instruments with range: vac to 300 psi, vac to 21 kg/cm2.
Wetted Material: Diaphragm SS316L, Housing SS316.

Diaphragm seals for sanitary use.
Size: 1 1/2" & 2" Triclover Suitable for instruments with range: vac to 600 psi, vac to 40 kg/cm2.
Wetted Material: SS316L.

Compact high pressure seal.
Suitable for instruments with range: 1500 to 6000 psi, 100 to 400 kg/cm2.
Wetted Material: SS316, SS316L.

Diaphragm seals flanged types.
Pressure Rating: 150 to 1500 lbs, PN10 to PN100.
Size: 1/2" to 3"Flange (ANSI), DN15 to DN80 (DIN).
Wetted Material: SS316, SS316L, PTFE.

Diaphragm seals flanged types.
Pressure Rating: 150 to 1500 lbs, PN10 to PN100.
Size: 1/2" to 3"Flange (ANSI), DN15 to DN80 (DIN).
Wetted Material: SS316, SS316L, Hastelloy-C, Hastelloy-B, Nickel, Monel, Tantalum.

Diaphragm seals pancake types.
Pressure Rating: 150 to 1500 lbs, PN10 to PN100.
Size: 2" to 5"Flange (ANSI), DN50 to DN125 (DIN).
Wetted Material: SS316, SS316L, SS316 with PTEE protection, SS316 with Gold coating, Hastelloy-C, Monel.
