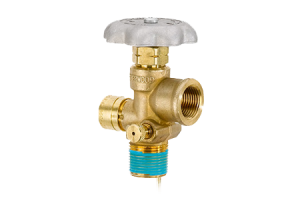

Global Industrial Gas Valves for Hydrocarbon-Based Flammable Gases
Product Description:
Global valve for hydrocarbon based flammable gases, including compressed natural gas (CNG), methane, ethane and other similar gases.
Key Features & Benefits
Automated assembly and testing processes ensure exceptional quality.
100% helium leak tested.
Heavy-duty forged brass body for durability and high pressure.
Precisely machined internal components meet the most stringent international valve performance standards.
Reduced internal stress zones.
Innovative valve core design.
Durable Buna-N O-ring and PTFE backup O-ring compatible with flammable gases.
Pressure Relief Device (PRD) unitized plug design provides excellent flow characteristics.
Metal-to-metal seal below bonnet threads prevents pressure in the threads at top of valve body.
Direct-drive stem design with optimized O-ring (NGV) or double O-ring (NGVHM) seal reduces friction and operates at exceptionally low torque levels.
Available inlets include NGT, UNF, DIN477, BS, ABNT and others.
Dual Fuel Valves for CNG and Hydrogen
Product Description:
Engineered for use with multi-fuel engines also known as bi-fuel using CNG and hydrogen.
Key Features & Benefits
Dual outlet design allows for manifolding without use of adapters or tees, eliminating multiple joints.
Location of outlets above valve seat enables individual cylinder isolation without shutting off manifold.
Designed for direct manifold connections, reducing components and leak points.
Crimped seat feature prevents seat extrusion and cold flow of the polymer seat.
Available in multiple seat material configurations to accommodate all high-purity gas applications.
Increased flow (Cv) to aid in reducing vent and purge times.
Low operating torque design to ensure ease of operation during filling and use.
Available with unitized Pressure Relief Device having fuse-metal backed or unbacked burst disc.
Available with standard CGA connections as well as international inlets and outlets.
Ball Valves for Bulk Transport
Product Description:
Designed for Type III and IV CNG cylinders used in bulk gas storage stacks, gas vehicle storage stacks and fast-fill cylinder storage stacks.
Key Features & Benefits
Designed for Type III and Type IV CNG (compressed natural gas) cylinders used in bulk gas cylinder storage stacks, gas vehicle cylinder stacks and fast-fill cylinder stacks.
Full-flow quarter-turn ball valve for fast filling with minimal cylinder neck valve constriction.
Saves commissioning time and reduces joint inspections.
Stem designed so that it cannot be blown out.
